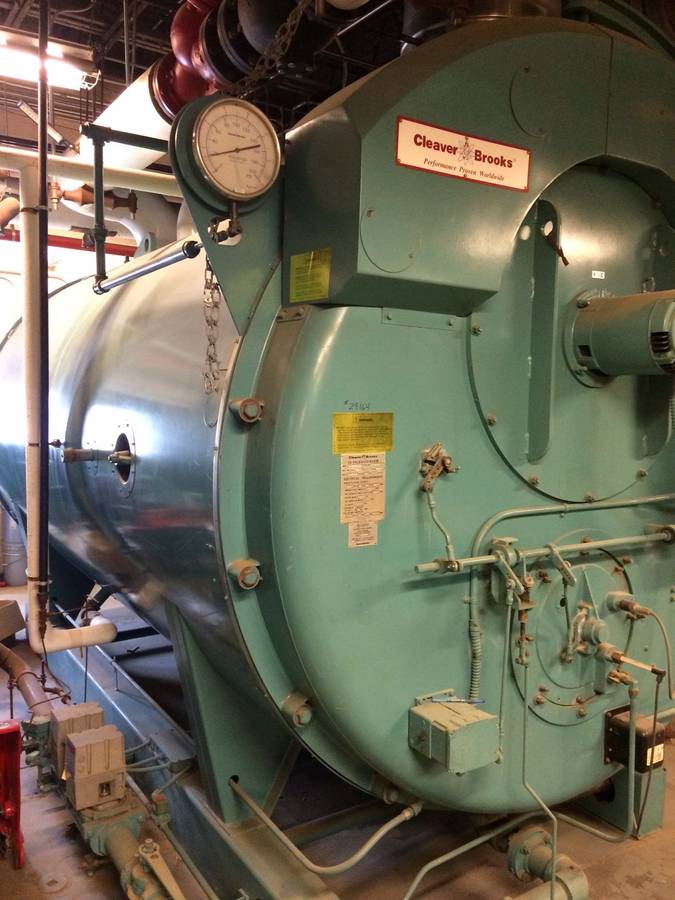

240 HP Cleaver Brooks 125 PSI Hot Water Boiler 2002 Model CBI-700-240-125

Used Cleaver Brooks Hot Water Boiler, 9,900,000 BTU/hr, Model CBI 700 240 125, 240 HP, MAWP 125 PSI, Fuel Natural Gas, Boiler Weight 23,400 lbs, Built 2002

Cleaver Brooks 240 HP 125 PSI High Pressure Hot Water Boiler

Equipment Description

Manufacturer: Cleaver Brooks

Model: CBI 700 240 125

Boiler Horsepower: 240 HP

Boiler Type: Hot Water Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 125 PSI

Heating Capacity: 9,900,000 BTU/hr

Steam Capacity: N/A

Year Built: 2002

Serial No: 0L102065

GPH Oil: N/A

Electrical Requirements

Main Power Supply

Voltage: 208V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 28 AMP

Minimum Circuit Ampacity: 34.8 AMP

Maximum Rating of Circuit Protection: 112 AMP

Blower Motor

Horsepower: 7.5 HP

Air Compressor Motor

Horsepower: N/A

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: N/A

Phase: N/A

Hertz: N/A

Ampacity: N/A
