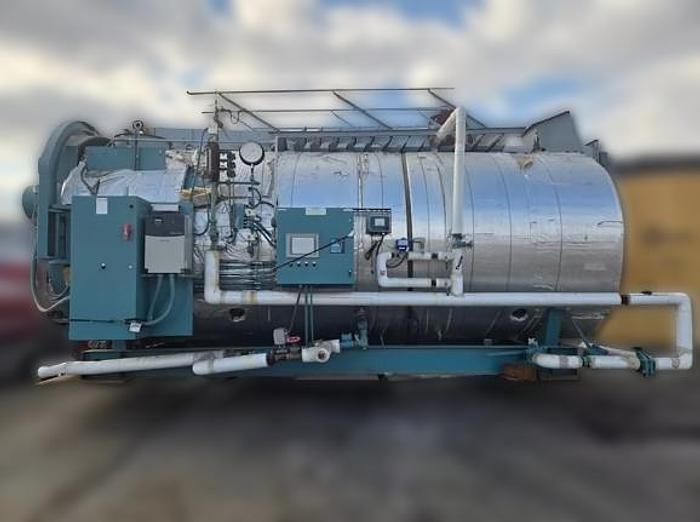

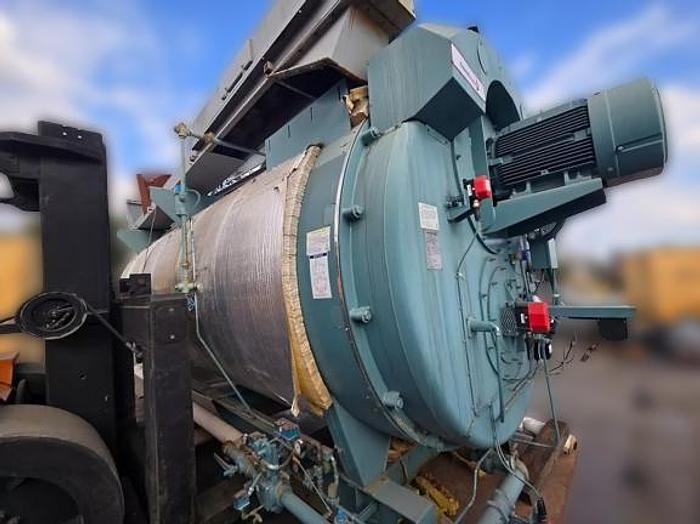

500 HP Cleaver Brooks 250 PSI Steam Boiler 2017 Model CBEX-E 700-500-250ST

Used Cleaver Brooks Steam Boiler 17,250 steam lbs/hr. 16,738,000 BTU/hr. Model CBEX-E 700-500-250ST. 500 HP. MAWP 250 PSI. Fuel Natural Gas. Serial No T6113-1-1, Built 2017

Cleaver Brooks 500 HP 250 PSI High Pressure Steam Boiler

Equipment Description

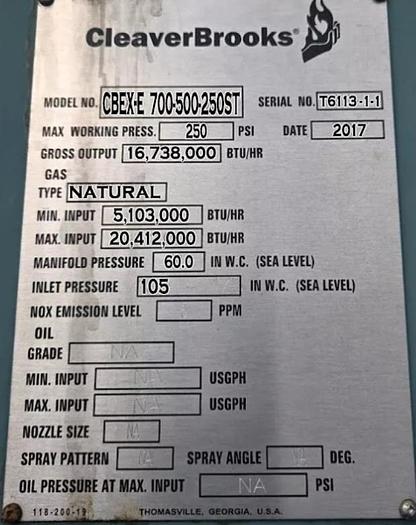

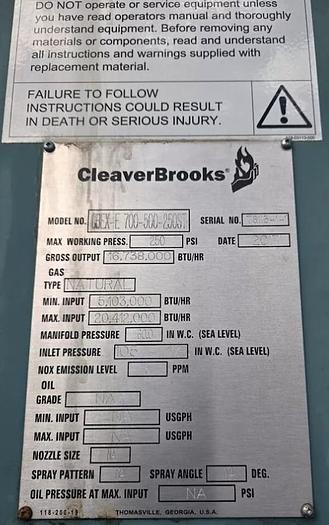

Manufacturer: Cleaver Brooks

Model: CBEX-E 700-500-250ST

Boiler Horsepower: 500 HP

Boiler Type: Steam Boiler

Fuel Source: Natural Gas

Design Pressure or Maximum Allowable Working Pressure: 250 PSI

Heating Capacity: 16,738,000 BTU/hr

Steam Capacity: 17,250 lbs/hr.

Manifold Pressure: 60.0 IN W.C (SEA LEVEL)

Inlet Pressure: 105 IN W.C (SEA LEVEL)

Year Built: 2017

Serial No: T6113-1-1

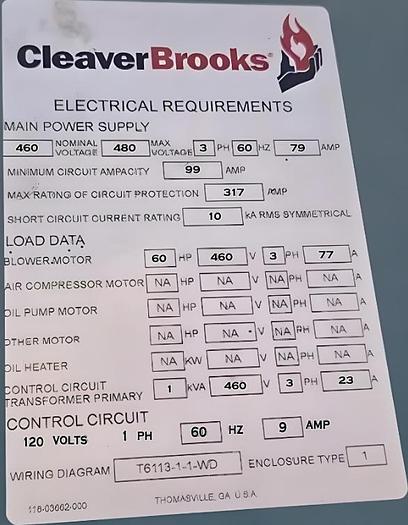

Electrical Requirements

Main Power Supply

Nominal Voltage: 460V

Max Voltage: 480V

Phase: 3 PH

Hertz: 60 HZ

Ampacity: 79 AMP

Minimum Circuit Ampacity: 99 AMP

Maximum Rating of Circuit Protection: 317 AMP

Short Circuit Current Rating: 10 kA RMS Symmetrical

Load Data

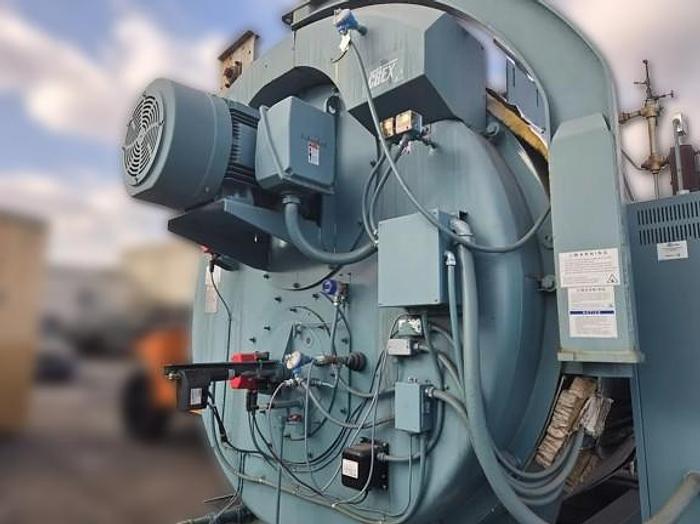

Blower Motor

Horsepower: 60 HP

Voltage: 460V

Phase: 3 PH

Ampacity: 77 AMP

Control Circuit Transformer Primary

Kilovolt-Amperes: 1 kVA

Voltage: 460V

Phase: 3 PH

Ampacity: 23 AMP

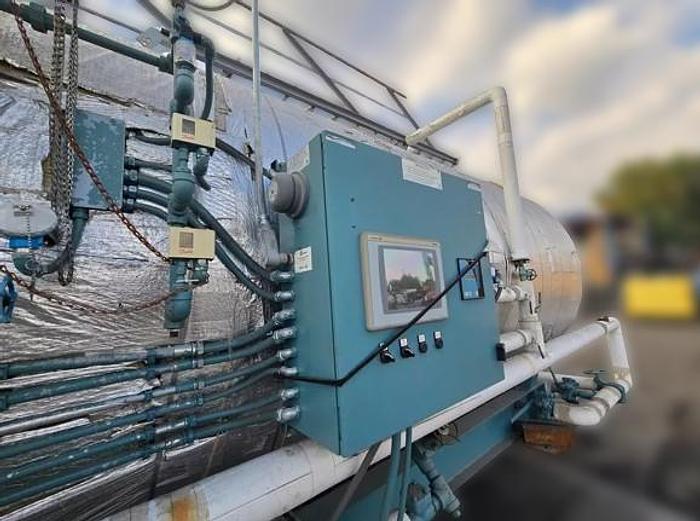

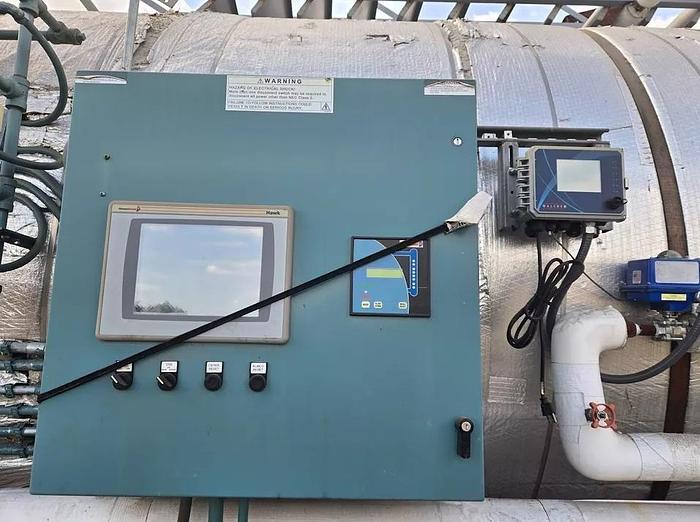

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 9 AMP
