150 HP Cleaver Brooks 150 PSI Steam Boiler Rental 1988 Model CB700-150

Used Cleaver Brooks Steam Boiler 5,175 steam lbs/hr, 6,277,000 BTU/hr, Model CB700-150, 150 HP, MAWP 150 PSI, Fuel Natural Gas, Operation Weight 46,000 lbs, Built 1988

Cleaver Brooks 150 HP 150 PSI High Pressure Steam Boiler

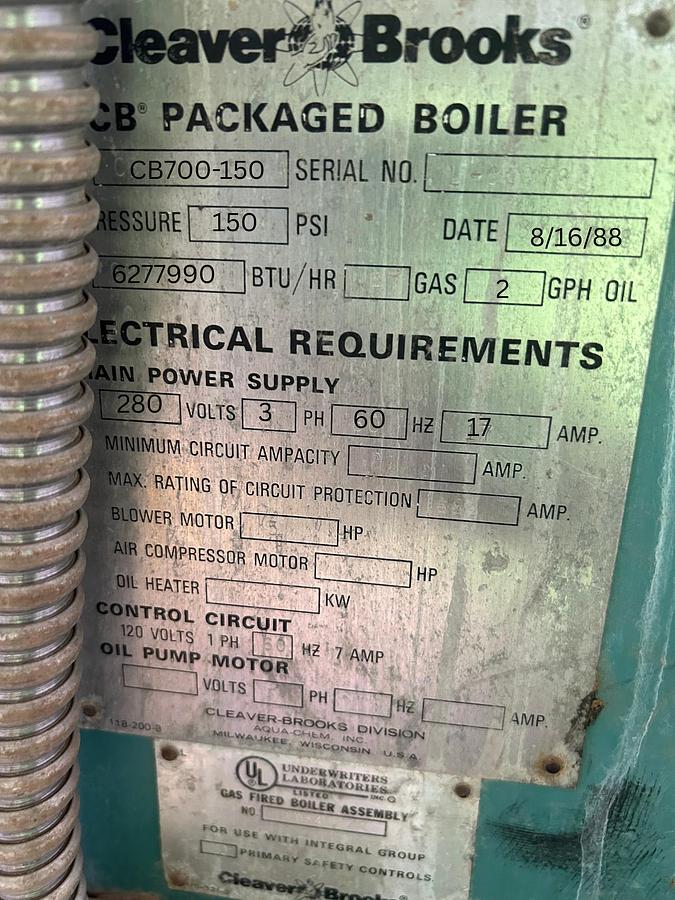

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB700-150

Boiler Horsepower: 150 HP

Boiler Type: Steam Boiler

Fuel Type: Gas

Design Pressure or Maximum Allowable Working Pressure: 150 PSI

Heating Capacity: 6,277,000 BTU/hr

Steam Capacity: 5,175 steam Lbs/hr

Year Built: 1988

Serial No: L-81976

GPH Oil: N/A

Electrical Requirements

Main Power Supply

Voltage: 460V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 17 AMP

Minimum Circuit Ampacity: 7.6 AMP

Maximum Rating of Circuit Protection: N/A

Blower Motor

Horsepower: N/A

Air Compressor Motor

Horsepower: N/A

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: N/A

Phase: N/A

Hertz: N/A

Ampacity: N/A

Overall Dimensions

Length: 16.58 ft

Width: 7.08 ft

Height: 6.41 ft

Boiler Weight: 13,800 lbs

Operation Weight: 46,000 lbs.

Shipping Weight: 46,000 lbs.
