200 HP Cleaver Brooks 150 PSI Steam Boiler 1995 Model CB 700-200

Used Cleaver Brooks Steam Boiler 6,900 steam lbs/hr, 8,370,000 BTU/hr, Model CB 700-200, 200 HP, MAWP 150 PSI, Fuel Natural Gas, Serial No L-94197, Boiler Weight 16,300 lbs, Built 1995. This is a refurbished

Cleaver Brooks 200 HP 150 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB 700-200

Boiler Horsepower: 200 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil or Combination

Design Pressure or Maximum Allowable Working Pressure: 150 PSI

Heating Capacity: 8,370,000 BTU/hr

Steam Capacity: 6,900 steam Lbs/hr

Year Built: 1995

Serial No: L-94197

GPH Oil: N/A

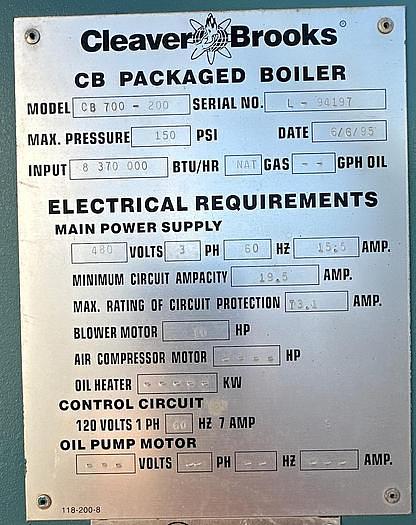

Electrical Requirements

Main Power Supply

Voltage: 480V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 15.5 AMP

Minimum Circuit Ampacity: 19.5 AMP

Maximum Rating of Circuit Protection: 73.1 AMP

Blower Motor

Horsepower: 10 HP

Air Compressor Motor

Horsepower: N/A

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: N/A

Phase: N/A

Hertz: N/A

Ampacity: N/A

Overall Dimensions

Length: 19.33 ft

Width: 7.08 ft

Height: 7.33 ft

Boiler Weight: 16,300 lbs
