500 HP Cleaver Brooks 200 PSI Steam Boiler 2001 Model CBI-700-500-200

Used Cleaver Brooks Steam Boiler 17,250 steam lbs/hr. 20,411,000 BTU/hr. Model CBI 700-500-200. 500 HP. MAWP 200 PSI. Fuel Natural Gas. Serial No 0L100851. Boiler Weight 44,000 lbs. Built 2001

Cleaver Brooks 500 HP 200 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks

Model: CBI-700-500-200

Boiler Horsepower: 500 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 200 PSI

Heating Capacity: 20,411,000 BTU/hr

Steam Capacity: 17,250 steam Lbs/hr

Year Built: 2001

Serial No: 0L100851

GPH Oil: N/A

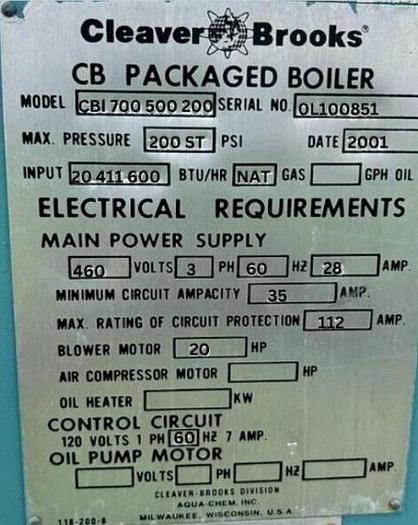

Electrical Requirements

Main Power Supply

Voltage: 460V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 28 AMP

Minimum Circuit Ampacity: 35 AMP

Maximum Rating of Circuit Protection: 112 AMP

Blower Motor

Horsepower: 20 HP

Air Compressor Motor

Horsepower: N/A

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: N/A

Phase: N/A

Hertz: N/A

Ampacity: N/A

Overall Dimensions

Length: 20.33 ft

Width: 10.25 ft

Height: 10.5 ft

Boiler Weight: 44,000 lbs
