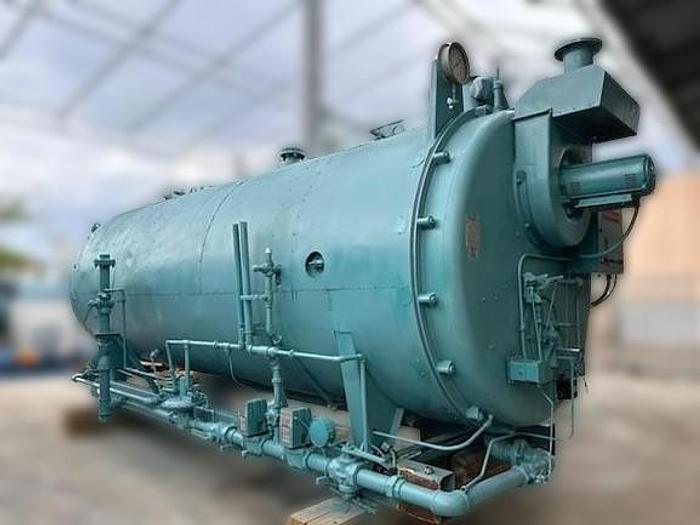

350 HP Cleaver Brooks 150 PSI Steam boiler 1990 Model CB-400-350

Used Cleaver Brooks Steam Boiler 12,075 steam lbs/hr, 14,645,000 BTU/hr, Model CB 400-350, 350 HP, MAWP 150 PSI, Fuel Natural Gas, Serial No L-88592, Boiler Weight 28,500 lbs, Built 1990

Cleaver Brooks 350 HP 150 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB 400-350

Boiler Horsepower: 350 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 125 PSI

Heating Capacity: 14,645,000 BTU/hr

Steam Capacity: 12,075 steam Lbs/hr

Year Built: 1990

Serial No: L-88592

GPH Oil: 97.6

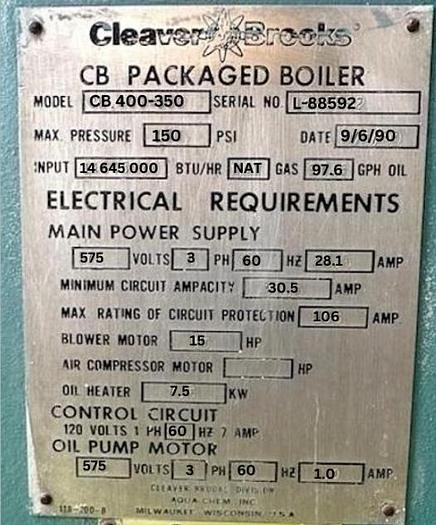

Electrical Requirements

Main Power Supply

Voltage: 575V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 28.1 AMP

Minimum Circuit Ampacity: 30.5 AMP

Maximum Rating of Circuit Protection: 106 AMP

Blower Motor

Horsepower: 15 HP

Air Compressor Motor

Horsepower: N/A

Oil Heater: 7.5 KW

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: 575V

Phase: 3

Hertz: 60Hz

Ampacity: 1.0 AMP

Overall Dimensions

Length: 21.41 ft

Width: 8.58 ft

Height: 8.83 ft

Boiler Weight: 28,500 lbs
