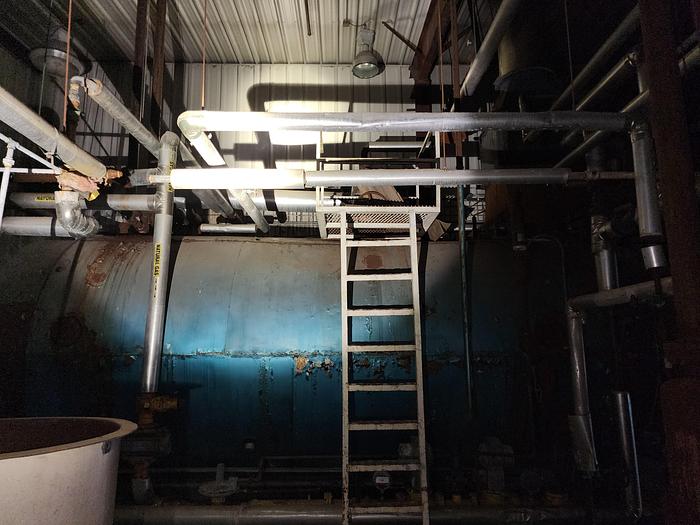

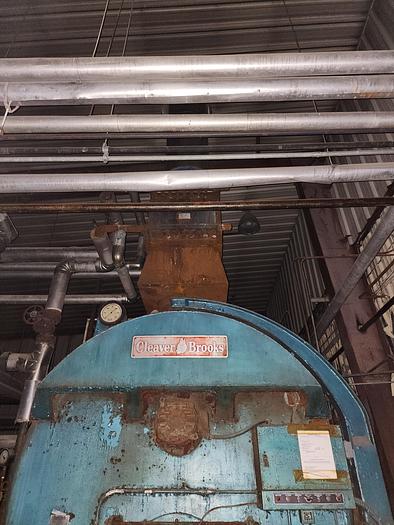

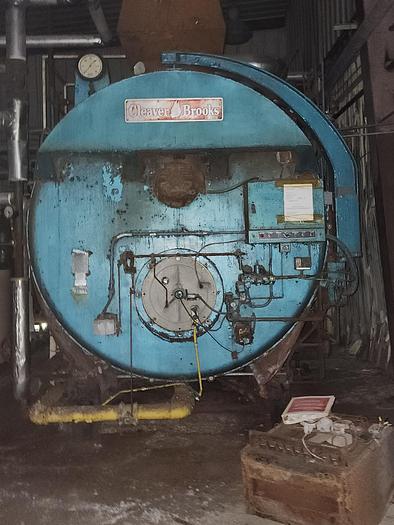

600 HP Cleaver Brooks 300 PSI Steam Boiler 1980 Model CB200-600-300

Used Cleaver Brooks Steam Boiler 20,700 steam lbs/hr, 25,106,000 BTU/hr, Model CB200-600, 600 HP, MAWP 300 PSI, Fuel Natural Gas, Serial No L-69506, Boiler Weight Approx, 60,000 lbs, Built 1980

Cleaver Brooks 600 HP 300 PSI High Pressure Steam Boiler

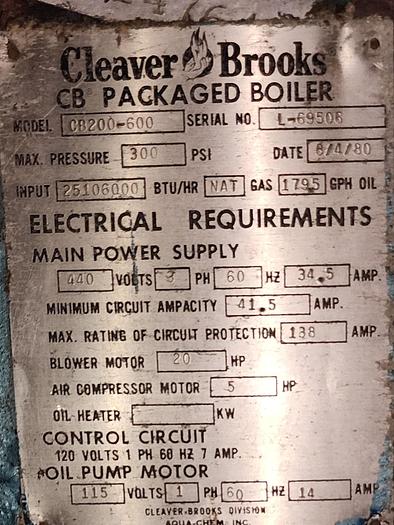

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB200-600

Boiler Horsepower: 600 HP

Boiler Type: Steam Boiler

Fuel Type: Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 300 PSI

Heating Capacity: 25,106,000 BTU/hr

Steam Capacity: 20,700 steam Lbs/hr

Year Built: 1980

Serial No: L-69506

GPH Oil: 179.5

Electrical Requirements

Main Power Supply

Voltage: 440V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 34.5 AMP

Minimum Circuit Ampacity: 41.5 AMP

Maximum Rating of Circuit Protection: 188 AMP

Blower Motor

Horsepower: 20 HP

Air Compressor Motor

Horsepower: 5

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: 115V

Phase: 1 PH

Hertz: 60Hz

Ampacity: 14 AMP

Overall Dimensions

Length: 23.66 ft

Width: 10.25 ft

Height: 10.5 ft

Boiler Weight: 60,000 lbs
