500 HP Vapor Power 150 PSI Steam Generator 2014 Model MRG-5907-CHK-500-LN

Used Vapor Power Steam Generator, 17,250 steam lbs/hr, HTG Surface 669 SQ. FT. Fuel Natural Gas/ No. 2 Oil, Model MRG-5907-CHK-500-LN, Built 2014

Vapor Power 500 HP 150 PSI Steam Generator

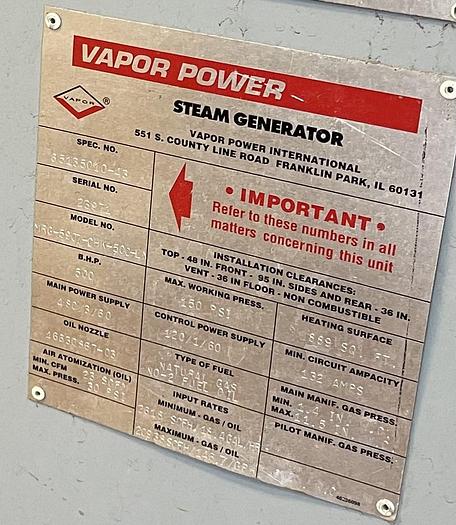

Equipment Description

Manufacturer: Vapor Power

Model: MRG-5907-CHK-500-LN

Horsepower: 500 HP

Design Pressure or Maximum Allowable Working Pressure: 150 PSI

Steam Capacity: 17,250 Steam Lbs/HR

Fuel Type: Natural Gas/ No.2 Fuel Oil

Year Built: 2014

Boiler Type: Steam Generator

Specification No: 6513510-43

Oil Nozzle: 46630967-03

Heating Surface: 669 SQ. FT.

Main Power Supply

Volts: 460V

Phase: 3 PH

Hertz: 60Hz

Control Power Supply

Volts: 120V

Phase: 1 PH

Hertz: 60Hz

Min. Circuit Ampacity

Ampacity: 132 AMP

Air Atomization (Oil)

Min. CFM: 23 SCFM

Max. Pressure: 30 PSI

Main Manif. Gas Press

Min: 1.4 IN W.C

Max: 11.5 IN W.C
