100 HP Cleaver Brooks 125 PSI Hot Water Boiler 2002 Model CB100-125As

Used Cleaver Brooks Hot Water Boiler, 5,230,000 BTU/hr, Model CB100-125A, 100 HP, MAWP 125 PSI, Fuel Type Diesel/Oil, Serial No L-102089, Year Built 2002. Great tubes ready to go back into service! We have the control store indoors

Cleaver Brooks 100 HP 125 PSI High Pressure Hot Water Boiler

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB100-125A

Boiler Horsepower: 100 HP

Boiler Type: Hot Water Boiler

Fuel Type: Diesel/Oil

Design Pressure or Maximum Allowable Working Pressure: 125 PSI

Heating Capacity: 5,230,000 BTU/hr

Steam Capacity: N/A

Year Built: 2002

Serial No: L-102089

GPH Oil: 37.5

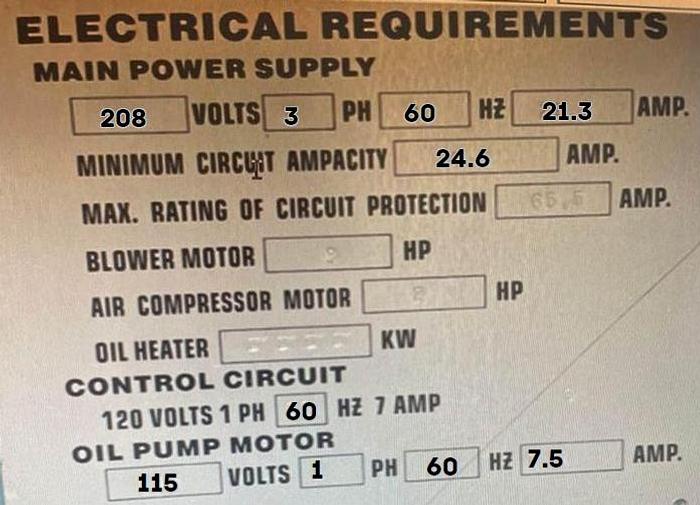

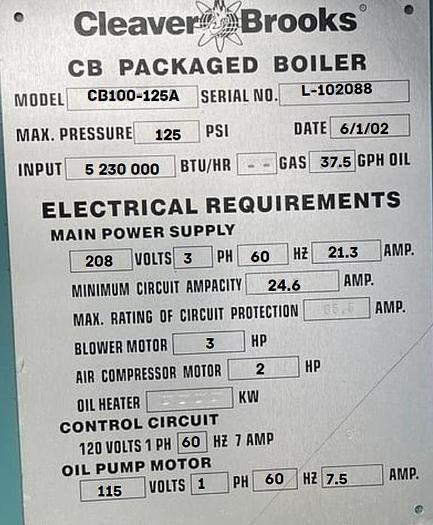

Electrical Requirements

Main Power Supply

Voltage: 208V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 21.3 AMP

Minimum Circuit Ampacity: 24.5 AMP

Maximum Rating of Circuit Protection: 33.3 AMP

Blower Motor

Horsepower: 3 HP

Air Compressor Motor

Horsepower: 2 HP

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: 115V

Phase: 1 PH

Hertz: 60Hz

Ampacity: 7.5 AMP

Overall Dimensions

Length: 15.58 ft

Width: 6.08 ft

Height: 6.5 ft

Boiler Weight: 9,500 lbs
