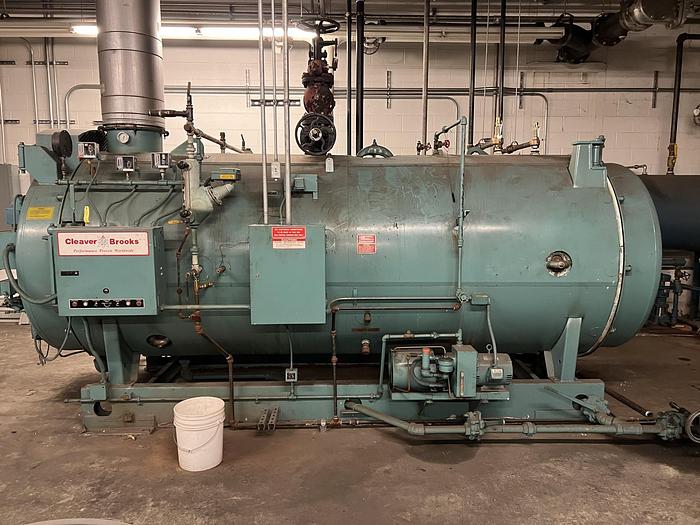

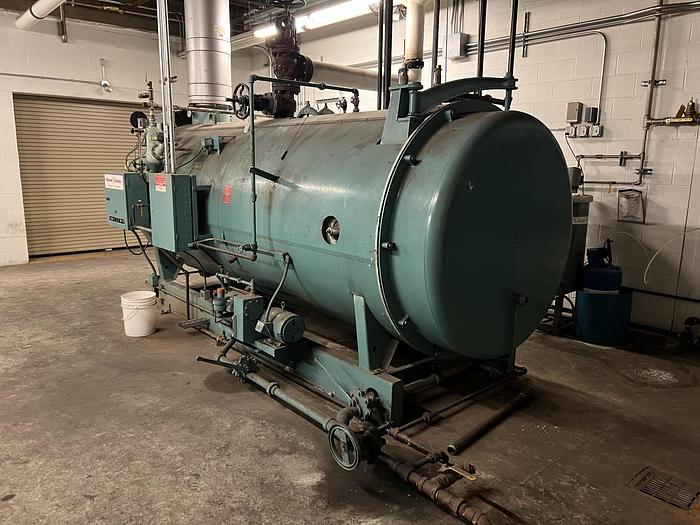

150 HP Cleaver Brooks 150 PSI Steam Boiler 2001 Rental Boiler

Used Cleaver Brooks Steam Boiler, Approx. 5,175 steam lbs/hr, Approx. 5,021,250 BTU/hr, Model CBI200-150LE, 150 HP, MAWP 150 PSI, Fuel Natural Gas/Oil Fired, Serial No L-101039, Boiler Weight 13,800 lbs, Built 2001. This boiler is coming our of service March 2023 Low Nox

Cleaver Brooks 150 HP 150 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks

Model: CBI200-150LF

Boiler Horsepower: 150 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 150 PSI

Heating Capacity: 5,021,250 BTU/hr

Steam Capacity: 5,175 steam Lbs/hr

Year Built: 2001

Serial No: L-101039

GPH Oil: 43.7

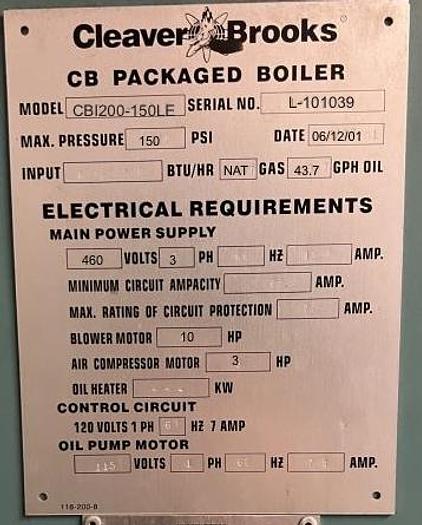

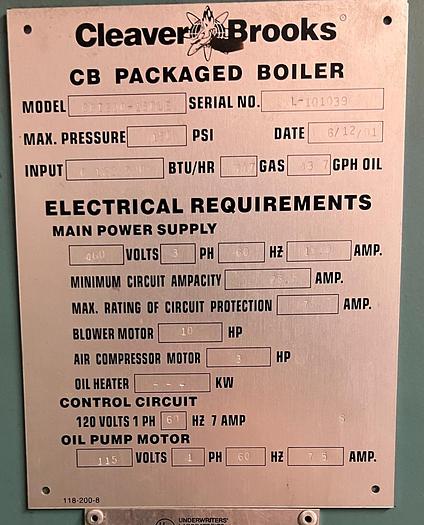

Electrical Requirements

Main Power Supply

Voltage: 460V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 10.0 AMP

Minimum Circuit Ampacity: 25.5 AMP

Maximum Rating of Circuit Protection: 77 AMP

Blower Motor

Horsepower: 10 HP

Air Compressor Motor

Horsepower: 3 HP

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: 115V

Phase: 1 PH

Hertz: 60Hz

Ampacity: 7.5 AMP

Overall Dimensions

Length: 16.58 ft

Width: 7.08 ft

Height: 7.33 ft

Boiler Weight: 13,800 lbs
