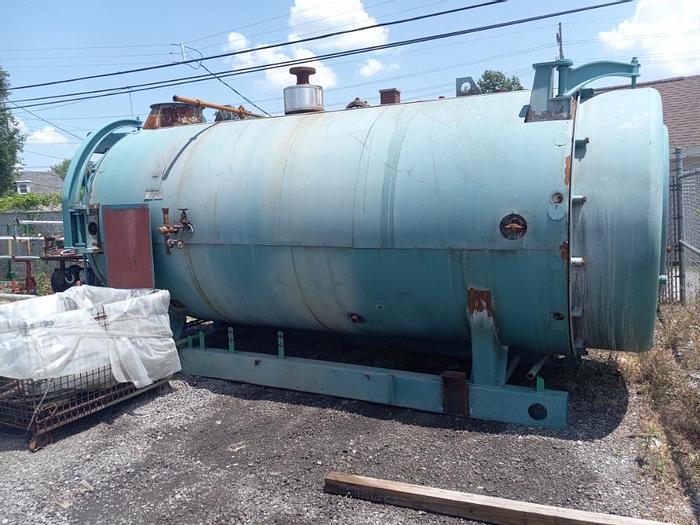

300 HP Cleaver Brooks 225 PSI Steam Boiler 1994 Model CB-700-300

Used Cleaver Brooks Steam Boiler, 10,350 steam lbs/hr, 12,500,000 BTU/hr, Model CB 700-300, 300 HP, MAWP 225 PSI, Fuel Natural Gas Fired, Serial No L-93622, Boiler Weight Approx 40,000 lbs, Built 1994

Cleaver Brooks 300 HP 225 PSI High Pressure Steam Boiler

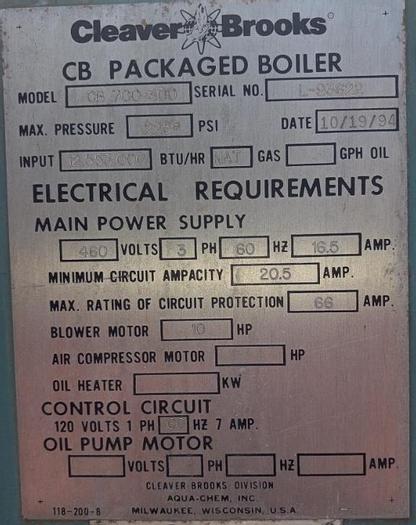

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB 700-300

Boiler Horsepower: 300 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 225 PSI

Heating Capacity: 12,500,000 BTU/hr

Steam Capacity: 10,350 steam Lbs/hr

Year Built: 1994

Serial No: L-93622

GPH Oil: N/A

Electrical Requirements

Main Power Supply

Voltage: 460V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 16.5 AMP

Minimum Circuit Ampacity: 20.5 AMP

Maximum Rating of Circuit Protection: 66 AMP

Blower Motor

Horsepower: 10 HP

Air Compressor Motor

Horsepower: N/A

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: N/A

Phase: N/A

Hertz: N/A

Ampacity: N/A

Overall Dimensions

Length: 24 ft

Width: 10 ft

Height: 14 ft

Boiler Weight: 44,000 lbs
