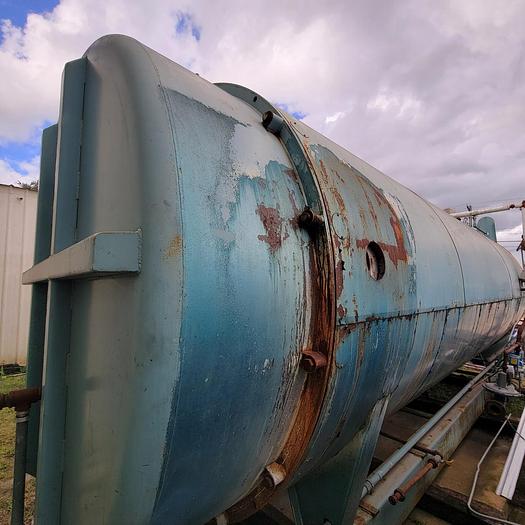

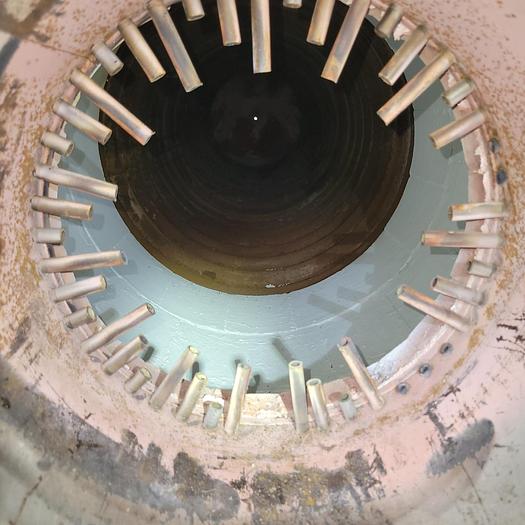

700 HP Cleaver Brooks 150 PSI Steam Boiler 1994 Model CB-200-700

Used Cleaver Brooks Steam Boiler, 24,150 steam lbs/hr, 28,291,000 BTU/hr, Model CB 200-700, 700 HP, MAWP 150 PSI, Fuel Natural Gas Fired, Serial No L-93603, Boiler Weight 54,100 lbs, Built 1994

Cleaver Brooks 700 HP 150 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB 200-700

Boiler Horsepower: 700 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 150 PSI

Heating Capacity: 28,291,000 BTU/hr

Steam Capacity: 24,150 steam Lbs/hr

Year Built: 1994

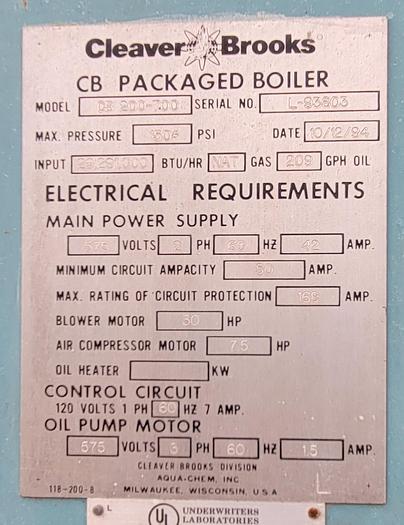

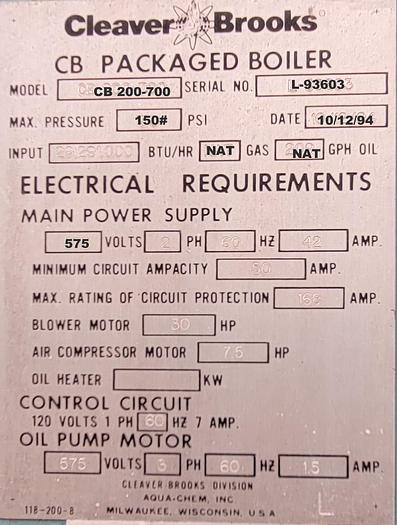

Serial No: L-93603

GPH Oil: 209

Electrical Requirements

Main Power Supply

Voltage: 575V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 42 AMP

Minimum Circuit Ampacity: 50 AMP

Maximum Rating of Circuit Protection: 168 AMP

Blower Motor

Horsepower: 30 HP

Air Compressor Motor

Horsepower: 7.5 HP

Oil Heater: N/A

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: 575V

Phase: 3

Hertz: 60Hz

Ampacity: 1.5 AMP

Overall Dimensions

Length: 26.41 ft

Width: 10.25 ft

Height: 10.5 ft

Boiler Weight: 54,100 lbs
