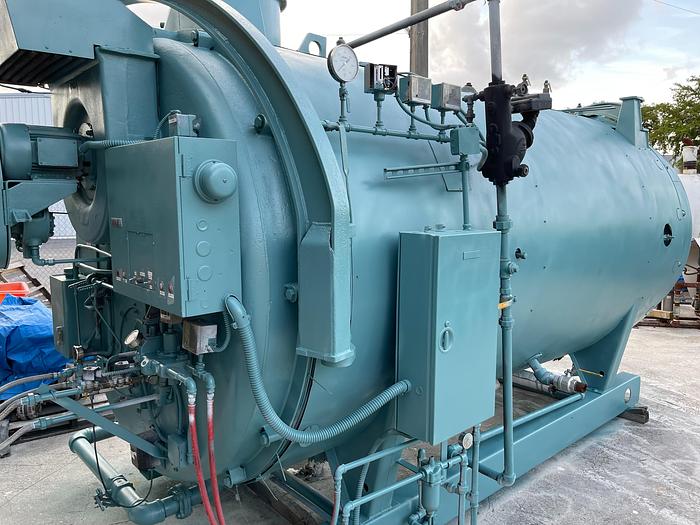

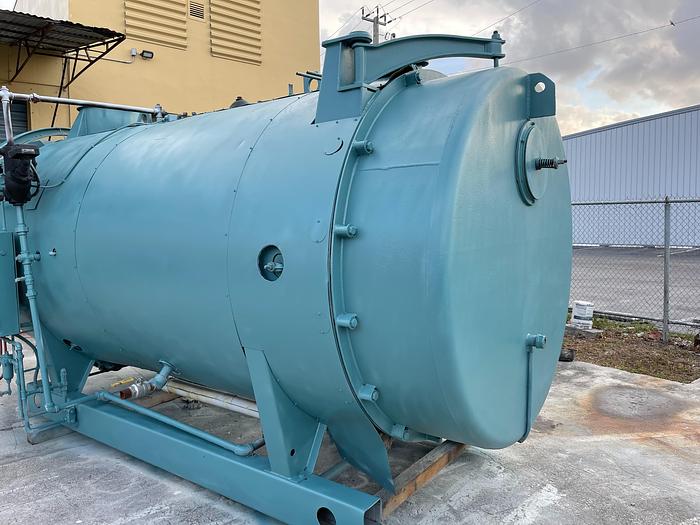

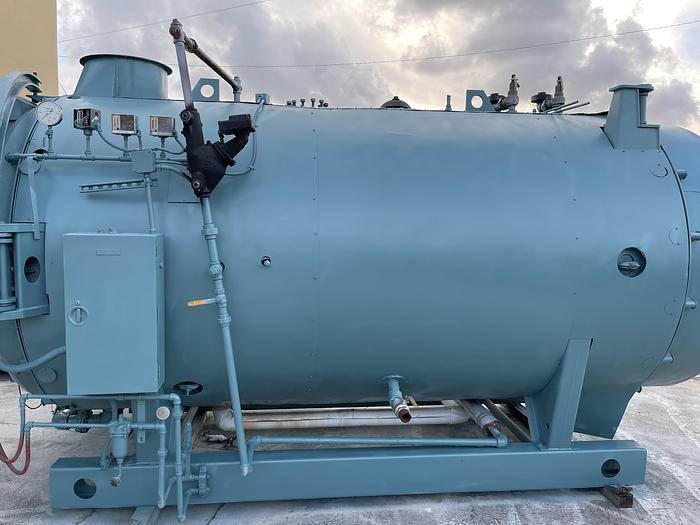

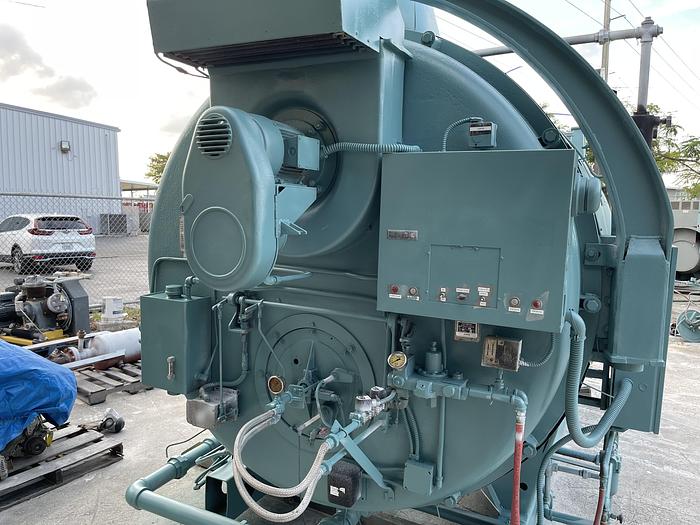

250 HP Cleaver Brooks 150 PSI Steam Boiler 1990 Model CB-200-250

Used Cleaver Brooks Steam Boiler, 8,625 steam lbs/hr, Approx 8,368,750 BTU/hr, Model CB 200-250, 250 HP, MAWP 150 PSI, Fuel Natural Gas Fired, Serial No L-88566, Boiler Weight 23,400 lbs, Built 1990. Cleaver Brooks Gas / OIL removed for service working November 2021, Good working condition Boiler and feedwater tank

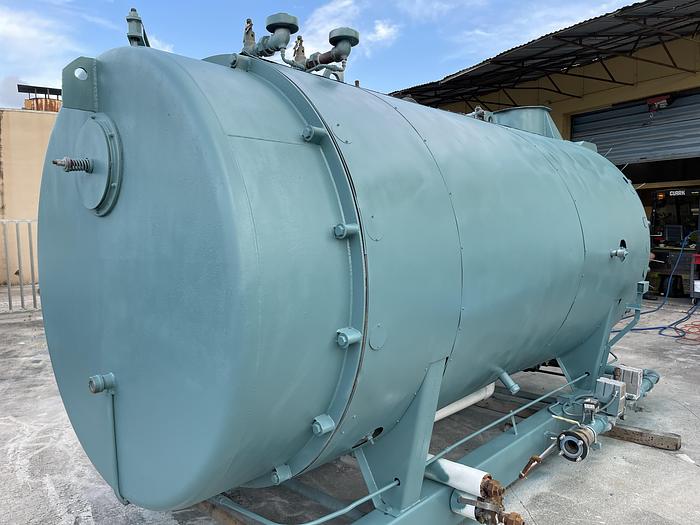

Cleaver Brooks 250 HP 150 PSI High Pressure Steam Boiler

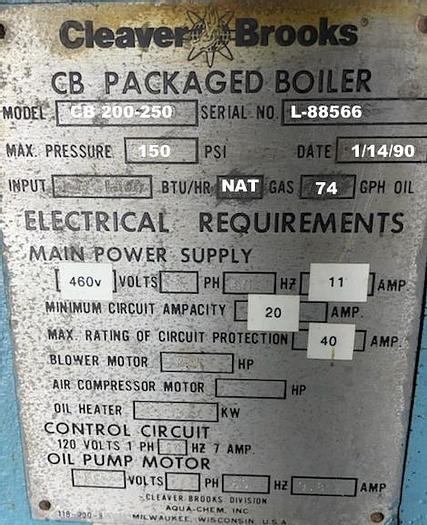

Equipment Description

Manufacturer: Cleaver Brooks

Model: CB 200-250

Boiler Horsepower: 250 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 150 PSI

Heating Capacity: 8,368,750 BTU/hr

Steam Capacity: 8,625 steam Lbs/hr

Year Built: 1990

Serial No: L-88566

GPH Oil: 74

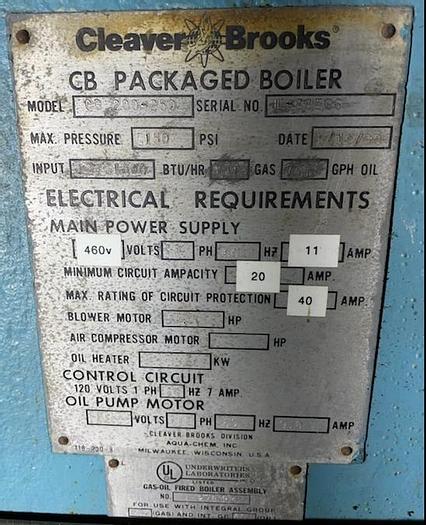

Electrical Requirements

Main Power Supply

Voltage: 460V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 11 AMP

Minimum Circuit Ampacity: 20 AMP

Maximum Rating of Circuit Protection: 40 AMP

Blower Motor

Horsepower: N/A

Air Compressor Motor

Horsepower: N/A

Oil Heater: 7.5 KW

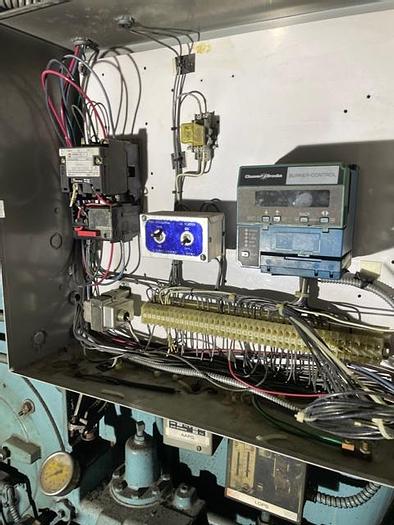

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP

Oil Pump Motor

Volts: 460V

Phase: 3

Hertz: 60Hz

Ampacity: 3.5 AMP

Overall Dimensions

Length: 16.41 ft

Width: 8.58 ft

Height: 8.83 ft

Boiler Weight: 23,400 lbs
